Electrical Plugs and sockets - Worldwide

From Edis Audio Visual Wiki
Jump to navigation Jump to search

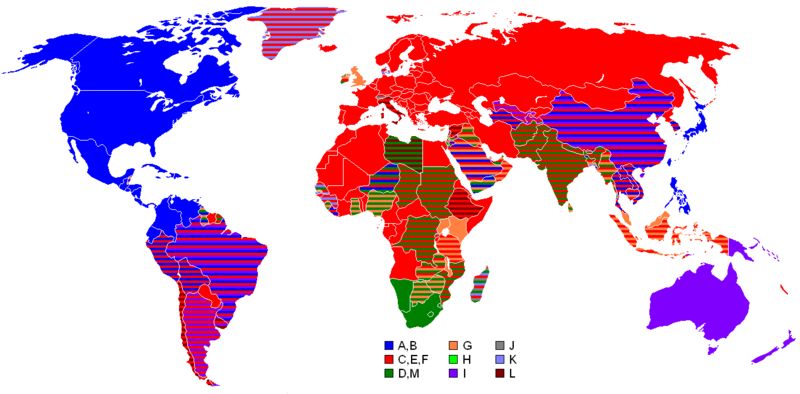

WorldMap Plugs.png

Type Image Description
A

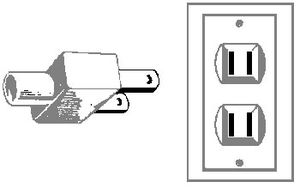

North American/Japanese 2-blade. Flat blade attachment plug.

NEMA 1-15 (North American 15 A/125 V ungrounded).

B
Plug typeB.jpg

American 3-pin. Flat blades (same as type A),but with round grounding pin.

NEMA 5-15 (North American 15 A/125 V grounded)

C

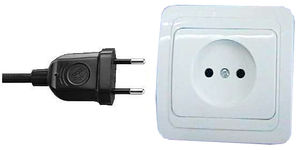

European 2-pin. Round pin attachment plug

CEE 7/16 (Europlug 2.5 A/250 V unearthed)

D

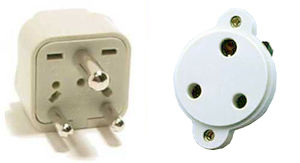

Old British plug. Round pins with ground.

BS 546 (5 A/250 V earthed).

E
Plug typeE.jpg

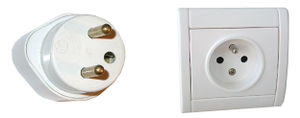

French 2-pin Round pin plug and socket CEE 7/16 (Europlug 2.5 A/250 V unearthed)

Type E sockets will also accept Type C plugs. Type E plugs will also work in Type F sockets

F

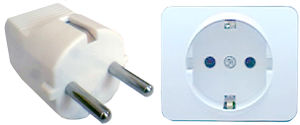

"Schuko" plug. Round pins with side ground contacts.

CEE 7/4 (German 16 A/250 V earthed)

G
Plug typeG.jpg

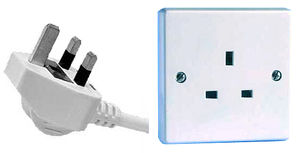

British 3-pin. Rectangular blade plug.

BS 1363 (British 13 A/230-240 V 50 Hz earthed and fused).

H

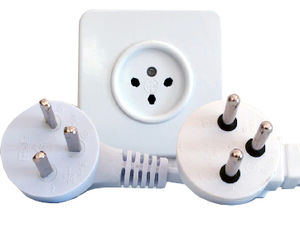

Israeli 3-pin. Oblique blades/pins with ground

SI 32 (Israeli 16 A/250 V earthed)

I
Plug typeI.jpg
Australian plug. Oblique flat blades(inverted V-shape) with ground
J

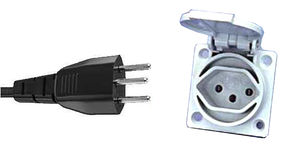

Swiss 3-pin. Round pins with offset ground.

SEV 1011 (Swiss 10 A/250 V).

K

Danish 3-pin. Round pins with spade ground.

Danish 10 A/250 V earthed.

L

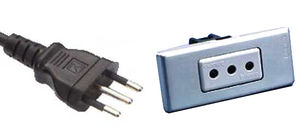

Italian 3-pin. Round pins with ground (in-line) Italian earthed plug/socket standard,

CEI 23-16/VII

M

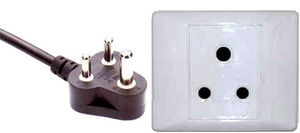

South African plug. Round pins similar to type D but larger and with one oversized pin.

BS 546 (South African 15 A/250 V)

See also Power Cords
