Product SKU:0080047 or 0080048

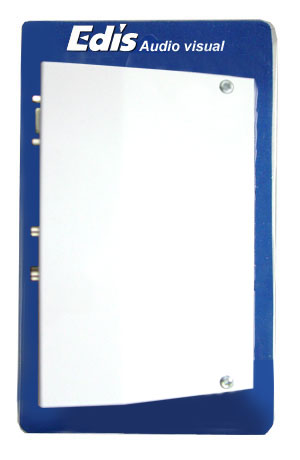

Plug-and-play cable box for audio visual projector installs in blister pack

Where to buy

Ask a question about this product

Description

Plug-and-play cable box for audio visual projector installs is available in two verions Female to Female  or Female to Male. Both have the same design of steel box with removeable lid and "knock outs" etc for cable entry at top, back and sides.



"Original" Female to Female Plug-and-play cable box (for standard Male to Male cables)  SKU 0080048

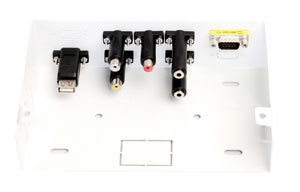

The "Original" design has female to female connectors and is supplied with the following plug and play connections for cables with male connectors :

  1. 1xVGA Female to Female 15 pin HD connector
  2. 1x 3.5mm mini jack Female to Female bulkhead coupler
  3. 1x RCA White Female to Female bulkhead coupler for Audio
  4. 1x RCA Red Female to Female bulkhead coupler for Audio
  5. 1x RCA Yellow Female to Female bulkhead coupler for composite video
  6. 1x USB A Female to B Female bulkhead coupler
  7. HDMI Female to Female bulkhead connector

Options

  • 1x additional 3.5mm mini jack Female to Female bulkhead coupler
  • 1x S-Video connector  which fits into knock-out (option)
  • 1x USBA-USB B repeater option (connect upto 5m of USB cable on either side of the Plug and Play box)

The "New" Male to Female Plug-and-play cable box design uses standard Fast-install cable sets - no need to stock extra cables if you already buy "Fast-install" -  male to female connectors enable the standard Fast-install cabes to fit directly onto new style male connectors. SKU 0080047

Just order Female to Female  (SKU 0080048) or Female to Male (SKU 0080047) connectors as you require



"New" Female to Male (for Fast-install cables)

Dimensions : 18.7x11.6x5 cm

The packaging is now ECO friendly Blister Pack



Audio Visual Cables are supplied separately in ECO friendly bag in 2m, 3m, 5m, 10m or 15 metre combinations  or in Poly bag and gift box  See Audio Visual Cable sets
