Product SKU:0200107-S

3x Zoom USB PTZ Huddle camera & wireless Speaker Phone
Ask a question about this product
Description

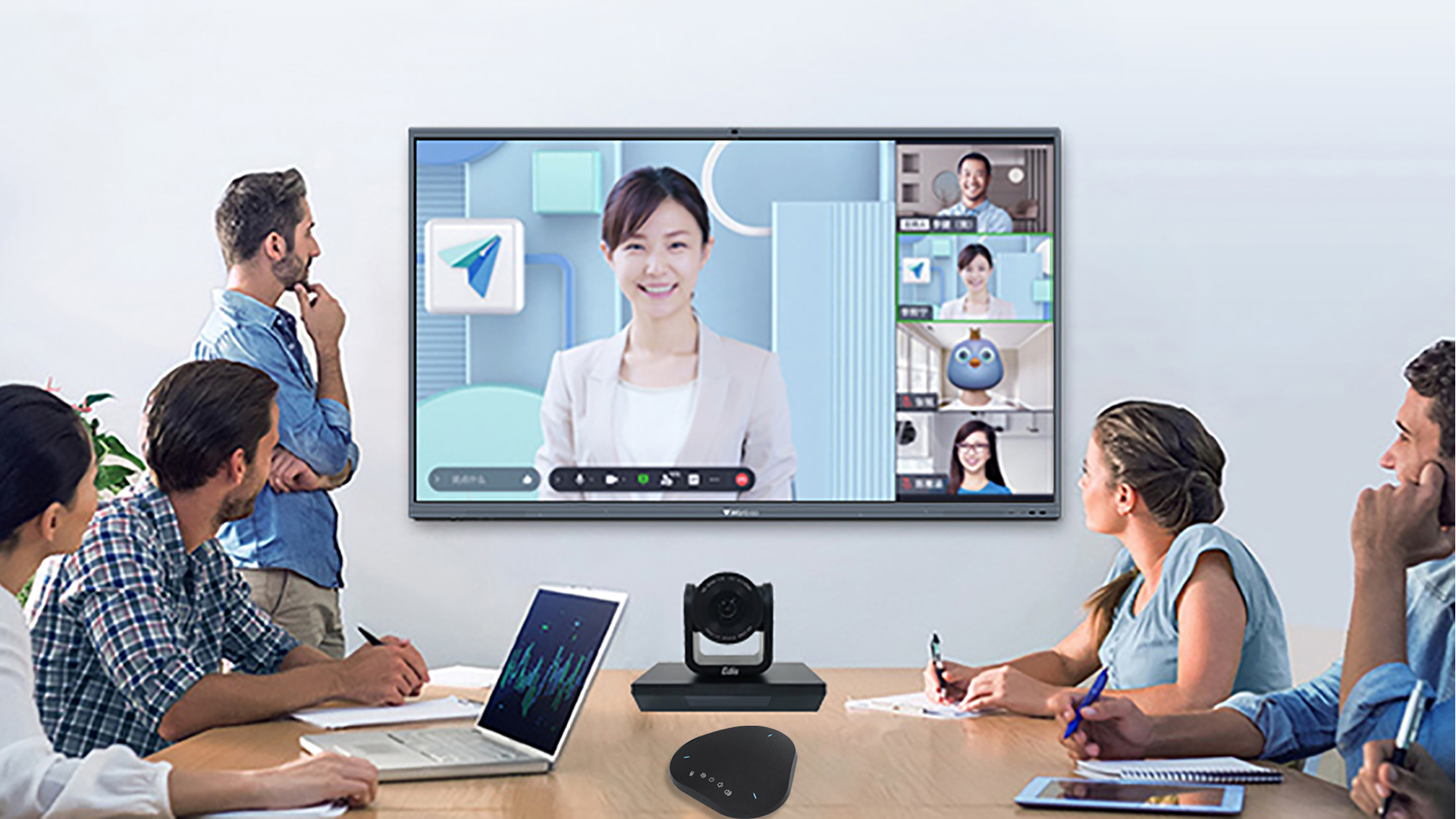

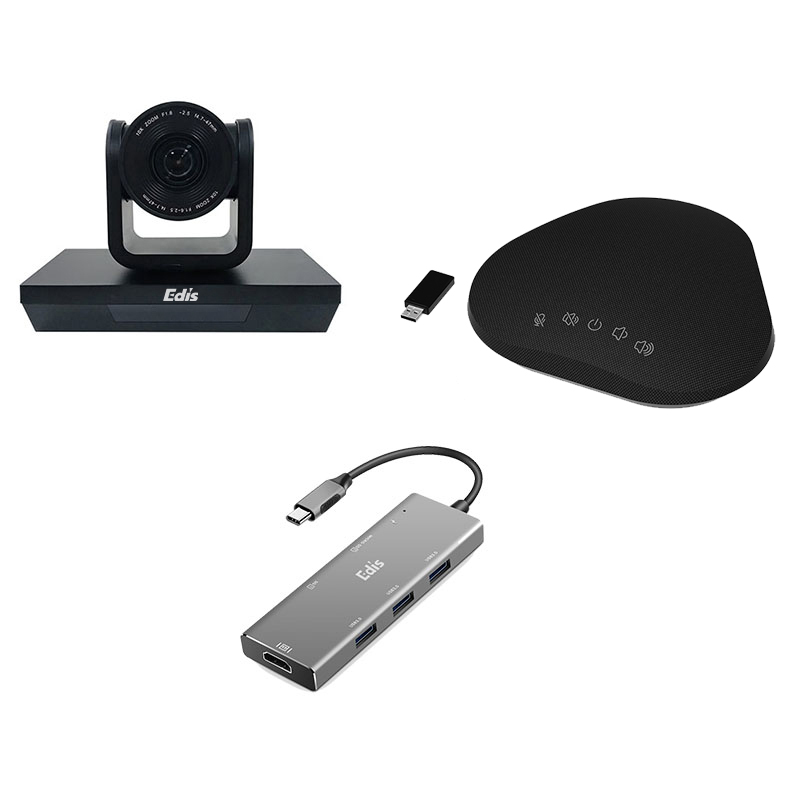

For 1 to 4 participants in small huddle meetings using a wireless speakerphone for really clear speech and no messy cabling,The docking station connects to laptop using just one cable and the system is compatible with any Web Conferencing system in Windows and MAC OS.



Convene Conference System Small 1 to 4 12

Convene Conference System Small 1 to 4 011

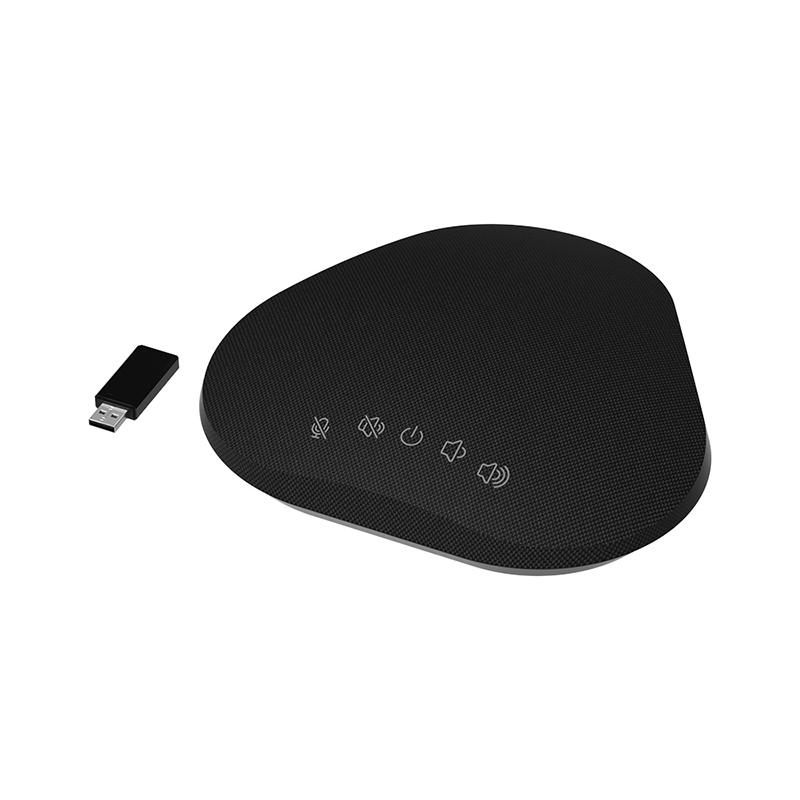

Microphone

The microphone is equipped with full duplex 360° omni-directional mic provides wide band audio through RF2.4G, and built in powerful speaker covering a distance of up to 3 meters in all directions.

Speaker

The speaker features an advanced Digital Signal Processing of echo cancellation and Noise suppression technology to ensure excellent audio clarity on both ends of the line, It also comes with a 3.5mm headset port that allows the user to switch from a conference call to a private conversation.







Docking station

A 5 port USB hub is included with 3x USB A 3 ports for the microphone wireless dongle and camera plus one spare, an HDMI port for display screen, a power input to charge your laptop while in use and a USB C connection cable (with USB C to USB A adaptor in case your laptop only has only a USB A connection)

Convene Conference System Small 1 to 4 0222

Convene Conference System Small 1 to 4 03





10.1 All-in-One terminal (Option)

Our versatile All-in-One Mini desktop computer supports WIFI 2.4G, Bluetooth4.0, HDMI1.4, TF cardreader etc. With USB3.0, USB2.0, COM ports, RJ-45 Gigabit Lan, and 5V DC power

Our All-in-One terminal is a valuable option to add to our Convene solutions

Very smart, portable and power saving, with speakers the ideal option to add to your convene system making it the Edis Convene+ Conference system

Camera Specification

Sensor ½.9” SONY CMOS
Effective Pixel 2.1 Megapixel
Min Illumination 0.1 Lux at F1.6
White Balance Auto/Manual
Gain Control Auto
Back Light Support
Electronic Shutter Support
S/N Ratio >50db
Focus f=3.3-10mm
Iris F1.7-F3.0
Zoom 3 x Optical
Video Output Interface USB2.0 Type B
Video Output Format

MJPEG:1080p 30/25
720p 30/25
640*480,640*360

Communication Interface USB
Control Protocol VISCA, PELCO-D, UVC
Baud Rate 9600bps/38400bps
Preset Position 64
OSD Menu Support
Image Flip Support Mirror & Flip
Pan Speed 1-40deg/s
Tilt Speed 1-40deg/s
Pan Rotation Angle 330deg
Tilt Rotation Angle Up: 30deg Down: 30deg
Remote Controller IR Wireless P/T/Z
Power Supply DC 12v 1A or USB
Working Temperature 0-50’C
Environment Humidity 0-95% RH
LxWxH 180mmx112mmx129mm
Weight 550g

Wireless Speakerphone Specification

Microphone Type Full Duplex Omni-Directional
Microphone Sensitivity -22dBFS
Microphone S/N Ratio  60dB
Microphone Frequency Range  20Hz-15kHz
Speaker  Full AGC
Echo Cancellation AEC up to 256ms
Noise Suppression >15dB
Sample Rate 16kHz/48kHz
Pickup Diameter Up to 3 Meters
Wireless RF2.4G
Audio Output 3.5mm jack for headset
Battery Charge Socket Mini USB
Control Button Functions

Power on/off, mute mic, silent
speaker, HIFI mode, volume
up/down

Power Charger DC5V 1A
Battery 2600ma
Talk Time Up to 10 hours
Charge Time Fully in 4 hours
Standby 90 days
Work Temperature 0-50’C
Environmental Humidity 0-95% RH
LxWxH 178mmx162mmx47mm
Weight 500g
