Learning 2-in-1 Document Camera
This high-performance, cost-effective 2-in-1 document camera is designed for online learning. It features a 16MP sensor, supports 4k@10fps output, and includes one-button focus rotation, and a built-in microphone. It's plug-and-play via USB and boasts a lightweight, portable design.

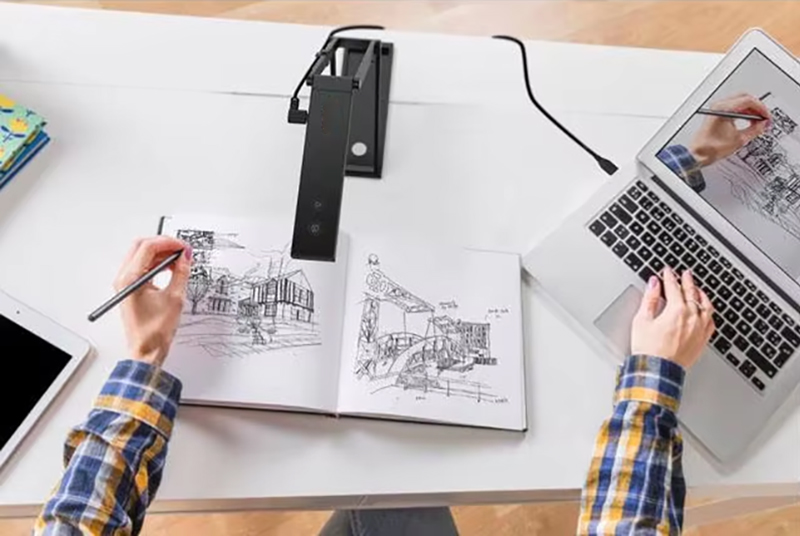

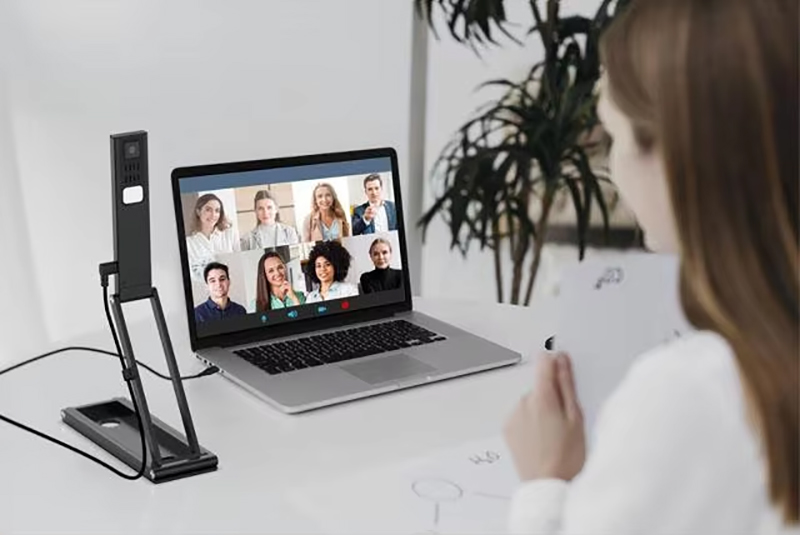

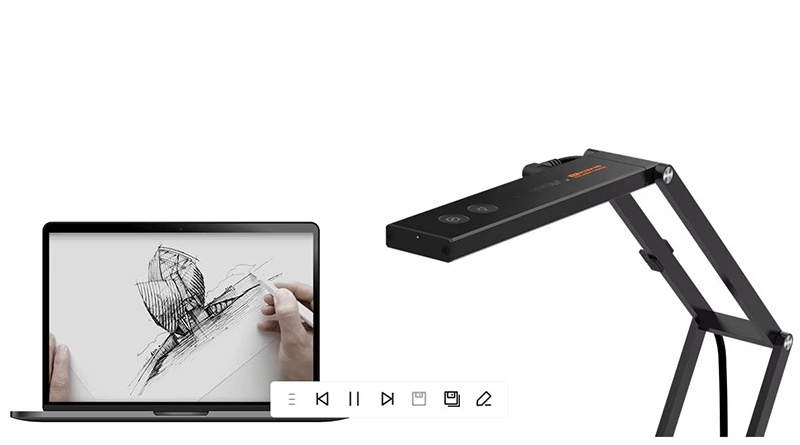

Live Streaming Document Camera
This device is compatible with mainstream video conferencing software such as Zoom and Teams, and features a built-in microphone. It can smoothly stream and display drawing and writing content, and includes an LED fill light for clear presentations, easily facilitating online lectures, practical demonstrations, and other teaching tasks.

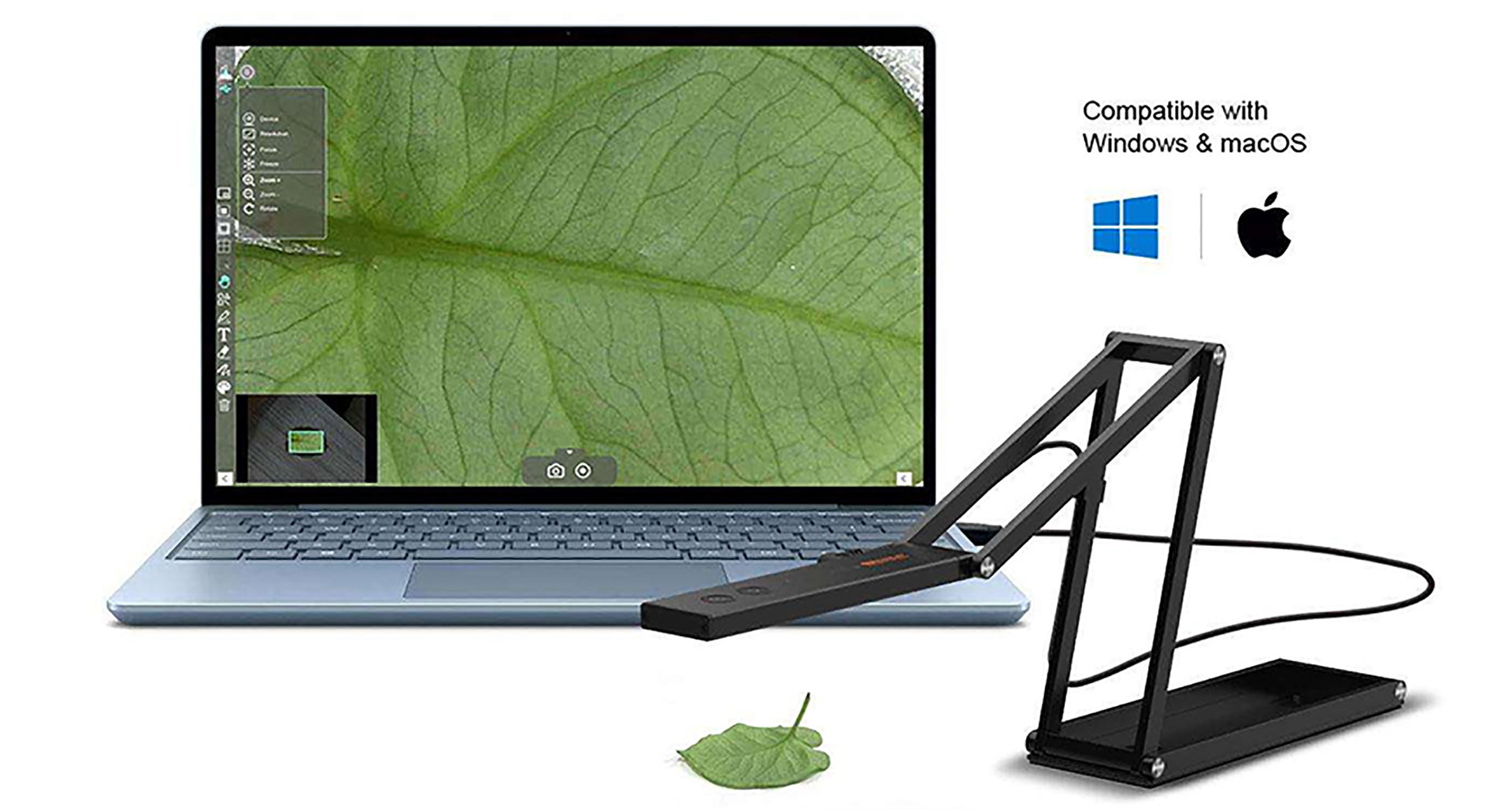

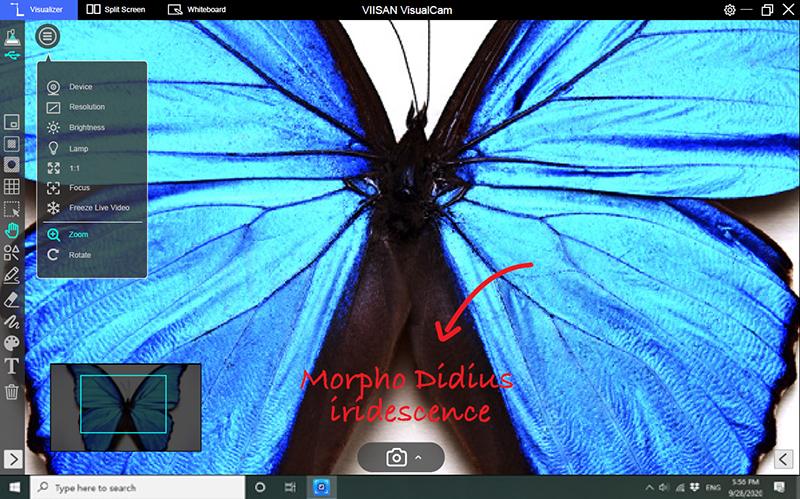

High-Definition 4K Document Camera
Equipped with a 16MP lens, it supports 4k@10fps high-definition output, allowing for magnified capture of minute details. Compatible with both Windows and macOS operating systems, and with the accompanying software, it easily enables macro observation and real-object photography, delivering clear and transparent teaching demonstrations.

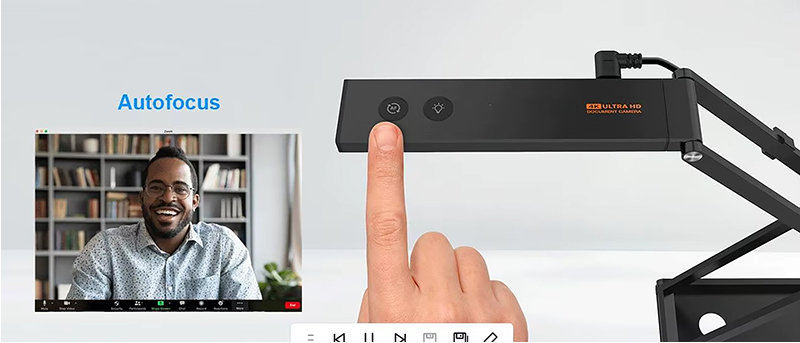

Autofocus Teaching Camera
Features a physical shortcut button for one-button autofocus, ensuring fast and clear images. This dual-purpose device allows students to attend online classes at home and also supports teachers in teaching and whiteboard demonstrations, flexibly adapting to two-way teaching scenarios.

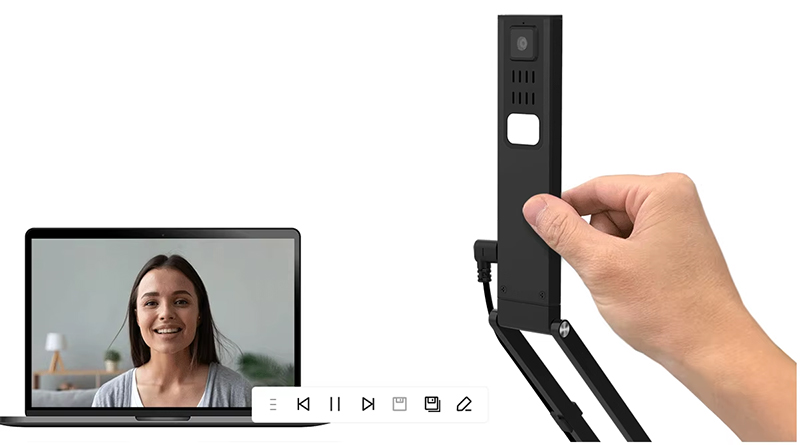

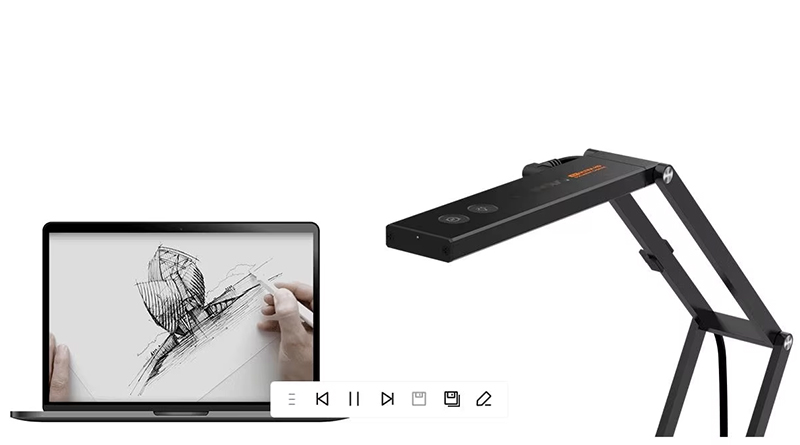

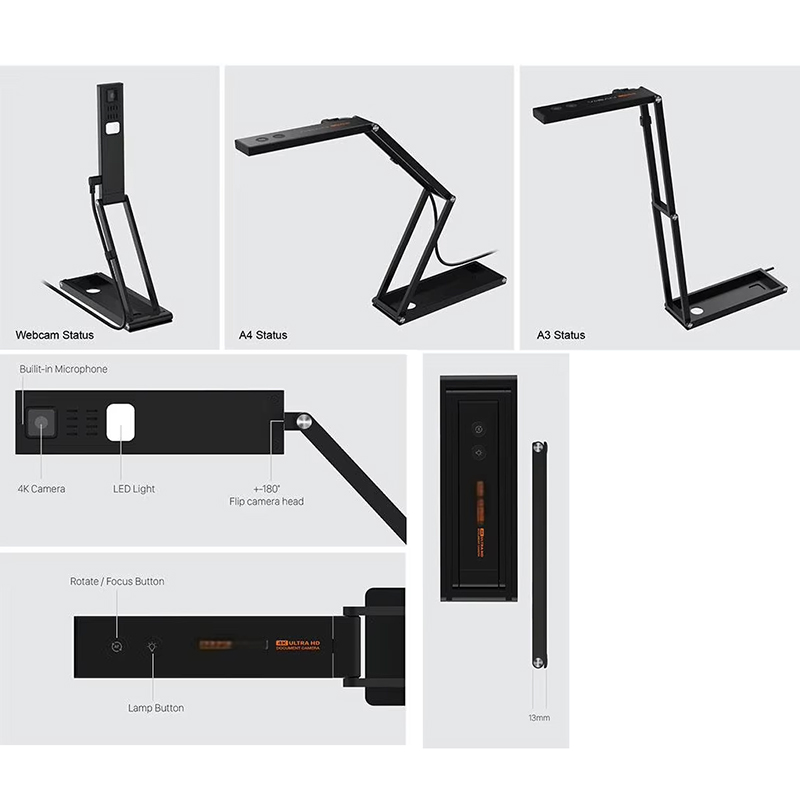

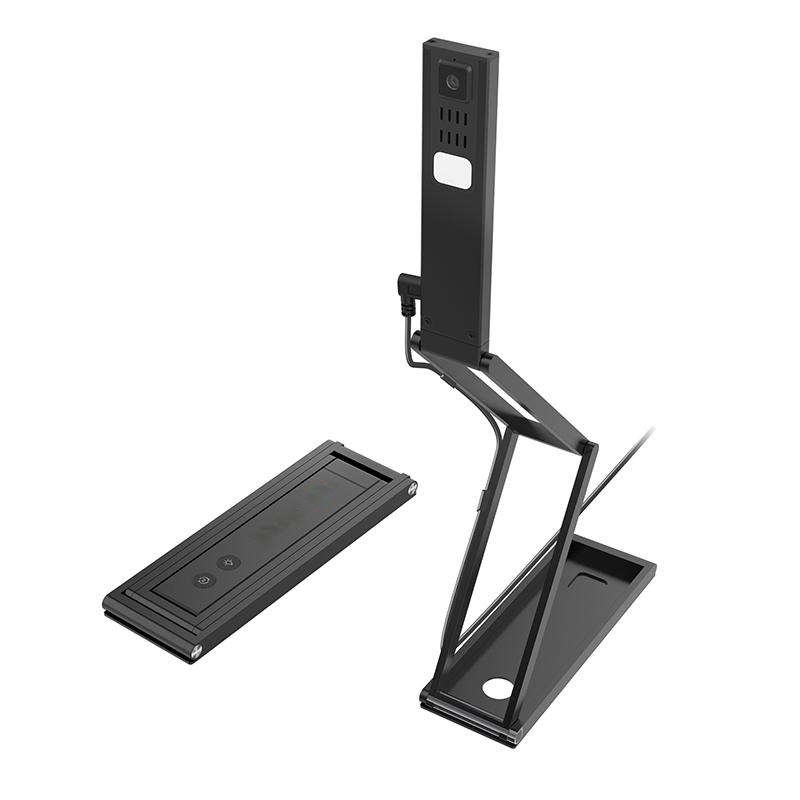

Dual-Mode Camera (2-in-1)
It functions as both a document camera and a webcam. Adjusting the lens angle allows for overhead shots of writing, drawing, and document demonstrations; when held vertically, it can be used as a regular webcam for online classes and video calls. Its versatility makes it perfectly suited for teaching and online presentations.
|
Specification |
|
|
Image Sensor |
16 Megapixel 1/2.8" CMOS 4656 × 3496 SONY IMX298 |
|

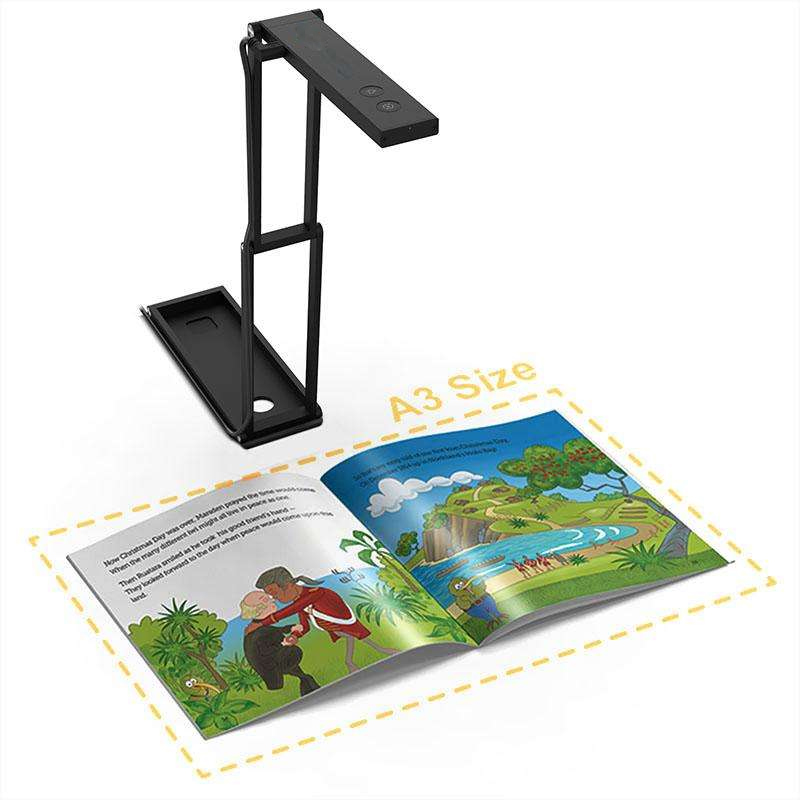

Max. Shooting Area |
440mm x 330mm (at output 4:3 mode ) |
|
Video Format |
MJPG 4K@10fps |
|
Focus |
Auto |
|
Lamp |
LED |
|

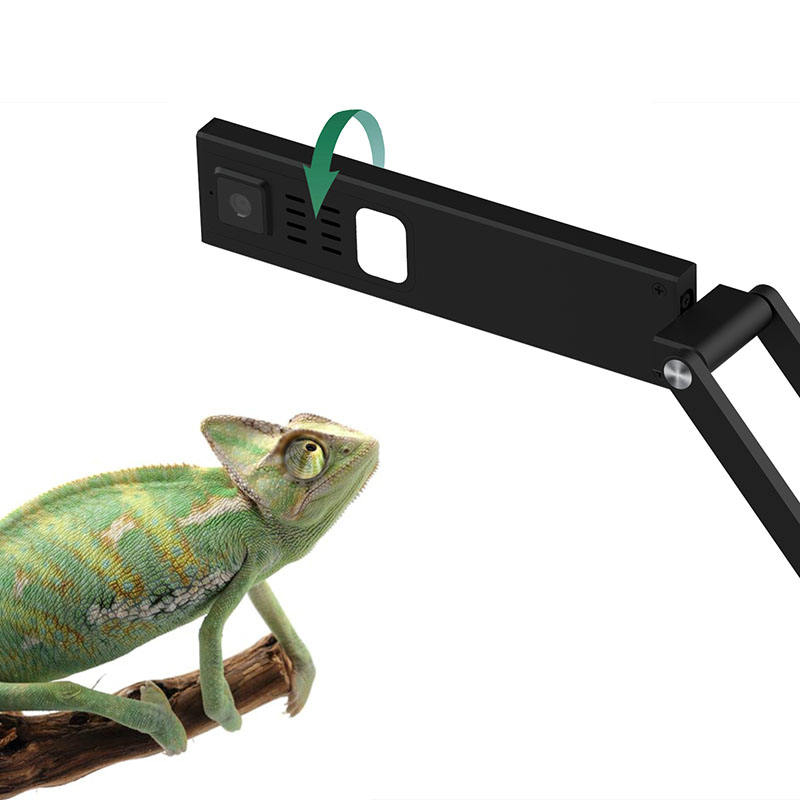

Image Rotation |
0° / 180° |
|
Power Frequency |
50 / 60 Hz |
|
Connectivity |
USB 2.0 |
|
Microphone |
Built-in Omnidirectional Microphone |
|
Powered By |
USB (5V/500mA) |
|
Protocol |
UVC / UAC Compliant |
|
Support OS (UVC) |
Windows, macOS, Chrome OS |
|
Dimensions (L x W x H) |
Expanded: 393x66x346mm / 15×2.5×7.6 inch Closed: 195x66x13mm / 7.6×2.5×0.5 inch |
|
Net Weight |
430g / 1.05lbs |
|
SYSTEM |
Windows 7, Windows 8.1, or Windows 10 Mac OS X® 10.7 or higher Google Chromebook™ Intel® i5 processor or higher 8GB RAM or more Hard drive space for recorded videos USB Port |
|
INSIDE THE BOX |
4K Document Camera USB cable Carry bag Quick Start Guide |
